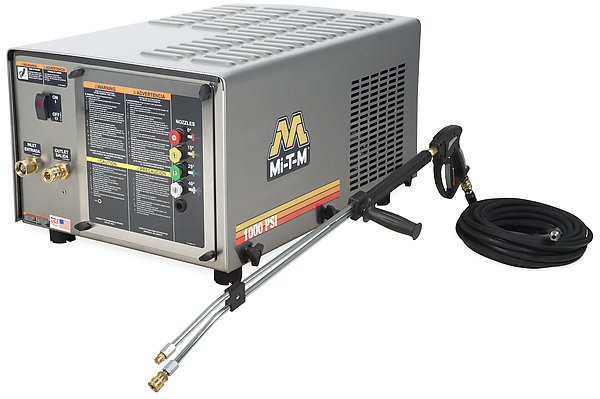

Premium Series Electric Stationary Belt Drive – DC-1003-WSE1G

1000 PSI | 2.5 GPM | 2.0 HP, 120V, 1Ø, 18.8A | General Pump

SKU: DC-1003-WSE1G Category:
  • Belt drive triplex piston pump with ceramic plungers
  • Factory preset stainless-steel and brass unloader
  • Pump accepts incoming water up to 165°F
  • Open drip-proof electric motor
  • 4-foot power cord
  • Dual cogged belt drive system
  • Time delay shutdown
  • Stainless-steel cabinet design with removable panel
  • Quick connect nozzles - 0°, 15°, 25° and 40°
  • External downstream detergent injector with detergent nozzle
  • 50-foot x 3/8-inch non-marking high pressure hose with quick connects
  • Adjustable 36-inch dual lance with insulated trigger gun (48-inch lance on DC-3005-WSE3G)
  • Limited electric motor warranty
  • ETL Certified - US

Note: ^208V motors available as options. *460V motors available as options.
Net WT: 172 lb. | Ship WT: 222 lb.

Additional information

Brand

Mi-T-M

PSI

1000

GPM

2.5

Pump Brand

General

Motor

120V, 18.8A, 1Ø, 2.0 HP

Drive Type

Belt Drive
